Economy Gas Fryers from Vulcan |
|
STANDARD FEATURES
- Stainless steel fry tank, 65-70 lb. capacity.
- Large cold zone area.
- 1-1/4" full port ball type drain valve.
- Stainless steel front and door.
- G90 high grade galvanized non corrosive finish sides and back
- Door liner for added stability.
- Set of four nickel plated legs adjustable to 7".
- Twin fry baskets with plastic coated handles.
- 150,000 BTU/hr. input.
- Behind the door snap action millivolt thermostat control adjusts from 200° to 400°F with standing pilot.
- Millivolt System - Requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built in flue deflector.
- Nickel plated tube rack.
- Earth magnet to secure closed door.
- Easily removable stainless steel basket hanger for cleaning.
- Vulcan-Hart (Vulcan) / Wolf Range warrants the LG500 Gas Fryer to be free of defects in materials and workmanship for a period of 1 year from the date of original installation.
- Stainless steel fry tank will be warranted for 1 year. If tank is found to have a leak and is verified by an authorized service agency, the entire LG500 fryer will be replaced. Replacement fryer will be warranted for the balance of the original warranty.
- View Full Specifications (PDF) | Installation Manual
- View Information Sheet for LG series floor model Deep Fryers »
ACCESSORIES
- Casters 6" adjustable to 7", 2 locking, 2 non-locking
- Stainless steel tank cover.
- Grease protector strips.
- Single large basket - 13"w x 131/4"d x 51/2"h.
- Set of twin baskets - 61/2"w x 131/4"d x 6"h.
- Set of tri baskets - 41/4"w x 131/4"d x 51/2"h
- FRYMATE - VX15 add-on Frymate™ Dump Station.
- Flexible gas hose with quick disconnect.
- Please Call for Assistance with Fryer Accessories
- Note: Casters may be ordered at time of purchase and we offer a 4 locking caster set for immediate shipment separately.
- 1-877-386-7766
|

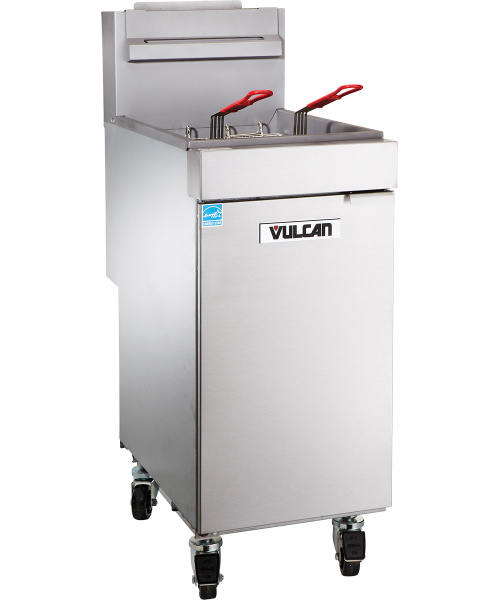

Please Note: Shown with Optional Casters (Steel Legs are standard)
MODEL LG500 (model LG300 is shown above with optional casters)
Item # LG500-1 (Natural Gas)
Item # LG500-2 (LP Gas)
|
| |
|
| |
| |
|
STANDARD FEATURES
- Overall dimensions: 15 1/2" W x 30 1/4" D x 36 1/4" H
- Stainless steel fry tank, 45 - 50 lb. capacity.
- Large cold zone area.
- 1-1/4" full port ball type drain valve.
- Stainless steel front and door.
- G90 high grade galvanized non corrosive finish sides and back
- Door liner for added stability.
- Set of four nickel plated legs adjustable to 7".
- Twin fry baskets with plastic coated handles.
- 120,000 BTU/hr. input.
- Behind the door snap action millivolt thermostat control adjusts from 200° to 400°F with standing pilot.
- Millivolt System - Requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built in flue deflector.
- Nickel plated tube rack.
- Earth magnet to secure closed door.
- Easily removable stainless steel basket hanger for cleaning.
- Vulcan-Hart (Vulcan) / Wolf Range warrants the LG400 Gas Fryer to be free of defects in materials and workmanship for a period of 1 year from the date of original installation.
- Stainless steel fry tank will be warranted for 1 year. If tank is found to have a leak and is verified by an authorized service agency, the entire LG400 fryer will be replaced. Replacement fryer will be warranted for the balance of the original warranty.
- View Full Specifications (PDF) | Installation Manual
- View Information Sheet for LG series floor model Deep Fryers »
ACCESSORIES
- Casters 6" adjustable to 7", 2 locking, 2 non-locking
- Stainless steel tank cover.
- Grease protector strips.
- Single large basket - 13"w x 131/4"d x 51/2"h.
- Set of twin baskets - 61/2"w x 131/4"d x 6"h.
- Set of tri baskets - 41/4"w x 131/4"d x 51/2"h
- FRYMATE - VX15 add-on Frymate™ Dump Station.
- Flexible gas hose with quick disconnect.
- Please Call for Assistance with Fryer Accessories
- Note: Casters may be ordered at time of purchase and we offer a 4 locking caster set for immediate shipment separately.
- 1-877-386-7766
|

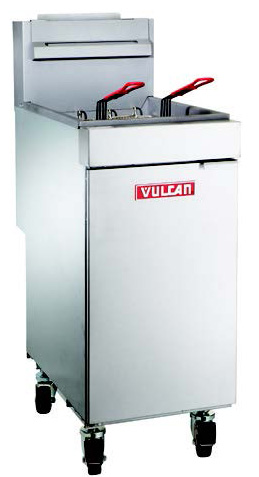

Please Note: Shown with Optional Casters (Steel Legs are standard)
MODEL LG400 (model LG300 is shown above with optional casters)
Item # LG400-1 (Natural Gas)
Item # LG400-2 (LP Gas)
|
| |
|
| |
| |
|
|
STANDARD FEATURES
- Overall dimensions: 15 1/2" W x 30 1/4" D x 36 1/4" H
- Stainless steel fry tank, 35 - 40 lb. capacity.
- Large cold zone area.
- 1-1/4" full port ball type drain valve.
- Stainless steel front and door.
- G90 high grade galvanized non corrosive finish sides and back.
- Door liner for added stability.
- Set of four nickel plated legs adjustable to 7".
- Twin fry baskets with plastic coated handles.
- 90,000 BTU/hr. input.
- Behind the door snap action millivolt thermostat control adjusts from 200° to 400°F with standing pilot.
- Millivolt System - Requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built in flue deflector.
- Nickel plated tube rack.
- Earth magnet to secure closed door.
- Easily removable stainless steel basket hanger for cleaning.
- Vulcan-Hart (Vulcan) / Wolf Range warrants the LG300 Gas Fryer to be
free of defects in materials and workmanship for a period of 1 year from the date of original installation.
- Stainless steel fry tank will be warranted for 1 year. If tank is found to have a leak and is verified by an authorized service agency, the entire LG300 fryer will be replaced. Replacement fryer will be warranted for the balance of the original warranty.
- View Full Specifications (PDF) | Installation Manual
- View Information Sheet for LG series floor model Deep Fryers »
ACCESSORIES
- Casters 6" adjustable to 7", 2 locking, 2 non-locking
- Stainless steel tank cover.
- Grease protector strips.
- Single large basket - 13"w x 131/4"d x 51/2"h.
- Set of twin baskets - 61/2"w x 131/4"d x 6"h.
- Set of tri baskets - 41/4"w x 131/4"d x 51/2"h
- FRYMATE - VX15 add-on Frymate™ Dump Station.
- Flexible gas hose with quick disconnect.
- Please Call for Assistance with Fryer Accessories
- Note: Casters may be ordered at time of purchase and we offer a 4 locking caster set for immediate shipment separately.
- 1-877-386-7766
|

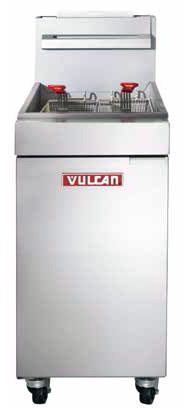

Please Note: Shown with Optional Casters (Steel Legs are standard)
MODEL LG300 (model LG300 is shown above with optional casters)
Item # LG300-1 (Natural Gas)
Item # LG300-2 (LP Gas)
|
| |
| |
|
|
STANDARD FEATURES
ACCESSORIES
- Casters 6" adjustable to 7", 2 locking, 2 non-locking
- Stainless steel tank cover.
- Grease protector strips.
- Single large basket - 13"w x 131/4"d x 51/2"h.
- Set of twin baskets - 61/2"w x 131/4"d x 6"h.
- Set of tri baskets - 41/4"w x 131/4"d x 51/2"h
- FRYMATE - VX15 add-on Frymate™ Dump Station.
- Flexible gas hose with quick disconnect.
- Please Call for Assistance with Fryer Accessories
- Note: Casters may be ordered at time of purchase and we offer a 4 locking caster set for immediate shipment separately.
- 1-877-386-7766
|
Please Note: Shown with Optional Casters (Steel Legs are standard)
MODEL LG300 (model LG300 is shown above with optional casters)
|
| |
| |
|
|
STANDARD FEATURES
ACCESSORIES
- Casters 6" adjustable to 7", 2 locking, 2 non-locking
- Stainless steel tank cover.
- Grease protector strips.
- Single large basket - 13"w x 131/4"d x 51/2"h.
- Set of twin baskets - 61/2"w x 131/4"d x 6"h.
- Set of tri baskets - 41/4"w x 131/4"d x 51/2"h
- FRYMATE - VX15 add-on Frymate™ Dump Station.
- Flexible gas hose with quick disconnect.
- Please Call for Assistance with Fryer Accessories
- Note: Casters may be ordered at time of purchase and we offer a 4 locking caster set for immediate shipment separately.
- 1-877-386-7766
|
Please Note: Shown with Optional Casters (Steel Legs are standard)
MODEL LG300 (model LG300 is shown above with optional casters)
|
View Data Sheet for Vulcan LG series floor model Deep Fryers (PDF)
Vulcan (and Wolf) Fryer Shutdown and Restart Procedure (PDF)
Vulcan VEG50 Energy Star Certification December 2021 (PDF)
Please Contact Us for Assistance with California Energy Rebates on all applicable Wolf/Vulcan Fryers and Equipment
|
|
