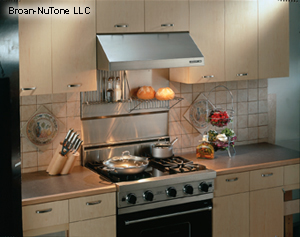

Broan SPECIFICATION SHEETS

RANGEMASTER®
60000 SERIES
RANGE HOOD

Provides high ventilation and durable construction to meet the needsof professional quality home ranges.

FEATURES

HOOD:
Widths - 30" to 72" in 6" increments
Finishes - Stainless Steel and appliance colors in White and Black
Appliance colors in 54", 60", 66" & 72" widths are Special Orders
Aluminum grease filters - dishwasher safe
Dual food warming lamps (BR40 Size, 250W Infrared) (purchase separately)
Three Halogen lights provide bright cooktop lighting (purchase separately)
Solid-State, infinite speed blower control with speed memory
Exclusive, Broan Heat Sentry™ turns blower ON to HIGH speedwhen excess heat is detected

BLOWER: (Choice of 6 Models)
Model 325 (Interior)
600 CFM, 120 VAC, 60 HZ, 7.6 AMPS
Interior-mounted, single-wheel design - attaches to rough-in plateindependent of hood
Includes Rough-in Kit. Uses 7" round duct (purchase separately)

Model 326 (Interior)
1200 CFM, 120 VAC, 60 HZ, 8.1 AMPS
Interior-mounted, dual-wheel design - attaches to rough-in plateindependent of hood
Includes Rough-in Kit. Requires 4-1/2" x 18-1/2" to 10" round transitionand 10" round duct (purchase separately)

Model 331 (Exterior)
600 CFM, 120 VAC, 60 HZ, 2.3 AMPS
Exterior-mounted, all aluminum construction
Use with 10" round duct (purchase separately)
Requires 332kr Rough-in Kit for installation

Model 332 (Exterior)
900 CFM, 120 VAC, 60 HZ, 5.8 AMPS
Exterior-mounted, all aluminum construction
Use with 10" round duct (purchase separately)
Requires 332kr Rough-in Kit for installation

Model 335 (Exterior)
1200 CFM, 120 VAC, 60 HZ, 3.0 AMPS
Exterior-mounted, all aluminum construction
Use with 10" round duct (purchase separately)
Requires 332kr Rough-in Kit for installation

Model 336 (Exterior)
1500 CFM, 120 VAC, 60 HZ, 3.8 AMPS
Exterior-mounted, all aluminum construction
Use with 10" round duct (purchase separately)
Requires 332kr Rough-in Kit for installation

BACKSPLASH, RP Series (Optional):
Widths - 30" to 72" in 6" increments
Stainless Steel construction - protects back wall and wipes cleaneasily
Two, dual-position food warming/condiment storage shelves

SOFFIT CHIMNEY, RN Series, (Optional):
Widths - 30" to 72" in 6" increments
Finishes - Stainless Steel and appliance colors in White and Black
Appliance colors in 54", 60", 66" & 72" widths are Special Orders
Use when installation location has no soffit

TYPICAL SPECIFICATION

The range hood shall be a Broan 60000 Series.

The hood will be Stainless Steel (White) (Black) and 30" (36") (42")(48") (54") (60") (66") (72") wide.

Hood to include washable aluminum filters, fluorescent cooktop lighting,warming lamps, solid state infinite speed blower control, and automaticblower operation under high heat conditions.

Blower shall be Broan Model 325 (326) (331) (332) (335) (336).

Blower to be mounted to soffit (ceiling) (exterior of home) independentof hood. It will be ducted to the outside using 7" (10") round ductwork.

Blower shall be rated at no less than 600 (900) (1200) CFM. It mustbe controlled through hood’s circuitry.

Installation shall include a Broan RP Series Backsplash.

Backsplash will be made of Stainless Steel. It must have two adjustablefood warming/condiment storage shelves.

Installation shall include a Broan RN Series Soffit Chimney.

Soffit Chimney will be Stainless Steel (White) (Black) and 30" (36")(42") (48") (54") (60") (66") (72") wide.



SPECIFICATION SHEET

RANGEMASTER® BALLISTA

61000 SERIES

RANGE HOOD

A flawless, seamless look for a lasting impression.

FEATURES

SPECIFICATION SHEET

RANGEMASTER® MIRAGE

62000 SERIES

RANGE HOOD

A graceful combination of hand-blown glass and stainless steel.

FEATURES

 SPECIFICATION SHEET

RANGEMASTER® PROVISA

63000 SERIES

RANGE HOOD

Designed to draw the eye from every vantage.

FEATURES

 SPECIFICATION SHEET

RANGEMASTER® ENCORE

64000 SERIES

RANGE HOOD

Provides high ventilation and durable construction o meet the needsof professional-style home cooking appliances.

FEATURES

BLOWERS

Model P5

Model P8Model 331Model 332*Includes 4.0 Amps representing all lamps

BLACKSPLASH

Top line features in the Rangemaster 64000 Series include:
RANGEMASTER 64000 SERIES
Range Hood
Backsplash
Baffle Filters
Blowers
Lamps*
Width
Stainless Steel
White
Black
Stainless Steel
(aluminum mesh filter standard)
P5
P8
331
332
Halogens
Infrared Heat**
30"
643004
643023
643023
RP3004
RBF30
x

x
x
2-PAR20
2-IR175R PAR38
36"
643604
643601
643623
RP3604
RBF36
x
x
x
x
2-PAR20
2-IR175R PAR38
42"
644204
644201
644223
RP4204
RBF42
x
x
x
x
3-PAR20
2-IR175R PAR38
48"
644804
644801
644823
RP4804
RBF48
x
x
x
x
3-PAR20
2-IR175R PAR38

* Lamps are not included.
** Optional backsplash is recommended when using infraredheat lamps.

Blower Information
Model
Mounting
CFM
Volts/Hz
Amps**
Duct Size at Discharge
P5
Interior
500
120/60
7.0
3-1/4" x 10"
P8
Interior
850
120/60
9.0
3-1/4" x 10"
331
Exterior
600
120/60
5.3
10" Rd.
332
Exterior
900
120/60
8.8
10" Rd.

**Includes 4.0 Amps representing all lamps.
