The Wolf 48" Gourmet Home Range - Discontinued
|
Dvorson's has been supplying Wolf products to quality kitchens worldwide since 1955. Winner of the prestigious Wolf Range Co. Silver Sales Award. |
|
![Wolf 48" Range, Stainless finish, Griddle, and Charbroiler, shown with Wolf hood](48Home/48andHood.jpg)
48" Stainless steel finish, with Griddle, and Charbroiler, shown under the new Wolf hood |
- Designed for "Zero Clearance" 24" Deep, fits 48" opening
- Top Burners with 500 BTU simmer to 16,000 BTU high
- 4 Position settings
- Dual Burners (Inner and Outer Flame)
- Infra-red Oven Broiler
- Energy Saving Electronic Ignition on all sealed Burners
- Reduced Surface Temperature and "Cool Touch" Control Knobs and Oven Door Handles
- Wolf convection oven offers European style forced airflow baking, infrared broiling, defrosting and more.
- Meets or Exceeds all National Building Safety Codes, AGA and CGA requirements.
![48" Range](48Home/48.jpg) |
![48" Stainless with 11" griddle and 11" Char Broiler](/Wolf/48Home/48SS.jpg)
48" stainless steel range with 4 burners, 11" griddle, & 11" char broiler |
Standard Features:
-
Stainless Steel or Black exterior
-
48"w x 24 3/8"d x 37" cooking height
-
Cast iron porcelain top grates
-
500 - 16,000 BTU top burners
-
5" Stainless steel riser or Island Trim
-
Automatic re-ignition sealed brass burners
-
Red knobs - Black knobs optional at time of order
-
Infrared broiler
-
Two Lighted ovens with glass doors, up to 30,000 BTU
Large Standard Oven - 24"w x 18.5"d x 16.5"h Convection Oven Available
Small Oven - 13.5"w x 18.5"d x 16.5"h
-
Porcelain interiors with 3 chrome racks 5 rack positions
-
S Grates Available
-
Red Knobs
-
Natural Gas or Propane
-
5" Stainless Steel Riser
-
4" SS legs in front, casters in the rear
-
Black powder-coat finish
-
Stainless Steel door gaskets
-
Full side panels, skirts included
|
Optional Features:
10" Stainless Riser
20" Stainless Riser w/ High Shelf
- Island Trim - rear
- Graduated French Top
- IR Thermostatically controlled Griddle 18,000 BTU
- IR Char-Broiler 16,000 BTU
- IR oven Broiler 18,000 BTU
- Porcelain "S" Grates
- Black Knobs
- Convection Oven - 24"w x 17"d x 16.5"h
- Stainless Steel Wok Ring
- Stainless steel exterior finish
Accessories
- 11" Cutting board
- 11" Griddle / CB cover
- 22" Griddle cover
|
Convection oven available only on the right
Specify if above 2000' altitude |
Hood Recommendations
Canopy: 100-150 CFM /sq. ft. of cooking surface |
![French Top](/Wolf/48Home/FrenchTop.jpg) |
![4 Burners and 22" Graduated French Top](48Home/P48F.jpg) |
4 Burners and 22" Graduated French Top
Model |
Description |
LBS. |
|
PS484FK |
Convection Oven, Stainless |
650 |
|
PS484F |
Standard Oven, Stainless |
650 |
|
P484FK |
Convection Oven, Black |
650 |
|
Graduated French Top Rings lift out for Wok Cooking
Eight Burners Top View
Model |
Description |
LBS. |
P488 |
Standard Oven, Black |
600 |
PS488 |
Standard Oven, Stainless |
600 |
P488K |
Convection Oven, Black |
600 |
PS488K |
Convection Oven, Stainless |
600 |
![11" Griddle](/Wolf/48Home/11Grid.jpg) |
![6 burners and 11" griddle](48Home/P486G.jpg) |
Six Burners & 11" Infrared Thermostatically Controlled Griddle
Model |
Description |
LBS. |
|
|
P486G |
Standard Oven, Black |
600 |
|
|
PS486G |
Standard Oven, Stainless |
600 |
|
|
P486GK |
Convection Oven, Black |
600 |
|
|
PS486GK |
Convection Oven, Stainless |
600 |
|
|
![11" CB](/Wolf/48Home/11CB.jpg) |
![6 burners and 11" char broiler](48Home/P486B.jpg) |
Six Burners and 11" Infrared Char-Broiler
Model |
Description |
LBS. |
|
|
P486B |
Standard Oven, Black |
600 |
|
|
PS486B |
Standard Oven, Stainless |
600 |
|
|
P486BK |
Convection Oven, Black |
600 |
|
|
PS486BK |
Convection Oven, Stainless |
600 |
|
|
![11" Griddle & 11" CB](/Wolf/48Home/11CB11Grid.jpg) |
![4 BURNERS 11" griddle AND 11" Char broiler](48Home/P48GB.jpg) |
Four Burners & 11" Infrared Char-Broiler and 11" Infrared Thermostatically Controlled Griddle
Model |
Description |
LBS. |
|
|
P48GB |
Standard Oven, Black |
600 |
|
|
PS48GB |
Standard Oven, Stainless |
600 |
|
|
P48GBK |
Convection Oven, Black |
600 |
|
|
PS48GBK |
Convection Oven, Stainless |
600 |
|
|
4 Burners and 22" Infrared Char Broiler
Model |
Description |
LBS. |
|
|
P484B |
Standard Oven, Black |
600 |
|
|
PS484B |
Standard Oven, Stainless |
600 |
|
|
P484BK |
Convection Oven, Black |
600 |
|
|
PS484BK |
Convection Oven, Stainless |
600 |
|
|
4 Burners and 22" Infrared Thermostatically Controlled Griddle
Model |
Description |
LBS. |
|
|
P484G |
Standard Oven, Black |
600 |
|
|
PS484G |
Standard Oven, Stainless |
600 |
|
|
P484GK |
Convection Oven, Black |
600 |
|
|
PS484GK |
Convection Oven, Stainless |
600 |
|
|
![2 Burners and 22" Graduated French Top 11" Charbroiler](48Home/P48FB.jpg)
2 Burners and 22" Graduated French Top 11" Infrared Charbroiler
Model |
Description |
LBS. |
|
|
P48FB |
Standard Oven, Black |
650 |
|
|
PS48FB |
Standard Oven, Stainless |
650 |
|
|
P48FBK |
Convection Oven, Black |
650 |
|
|
PS48FBK |
Convection Oven, Stainless |
650 |
|
|
Graduated French Top Rings lift out for Wok Cooking
Like a commercial hot top the french top is hotter in the middle and cooler at the edges. Rings lift out for wok cooking.

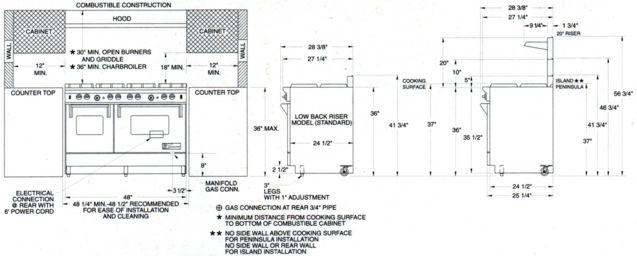

Click to see larger Spec graphic 50k
![Specifications Click for larger specs](48Home/48Secs.jpg)
The IR broiler (now included) is a wire mesh screen at the top of the oven when off. When on, it is a thin blue flame spread across the screen rather than the traditional gas jets.
At Time Of Order:
|
